Beckett
The Beckett ADC oil burner is designed for applications where an AC power source is not available. Its control system uses a cad cell flame sensor to manage the motor, igniter, and solenoid valve for reliable combustion.
0.75–2.50 GPH
105,000–350,000 BTU/hr input
12V / 24V DC
No AC power required
GeniSys® Control
Cad cell flame detection
About BECKETT BURNERS
BECKETT BURNERS
The Beckett ADC oil burner is designed for applications where an AC power source is not an option. The Control uses a suitable cad cell flame sensor to control the motor, igniter, and solenoid valve. Interrupted duty ignition extends battery life by only drawing full load current during the ignition period. The Pump has an integrated solenoid valve for smoother light-offs and cleaner shutdown. Air Guide provides high static pressure for smooth starts and minimal pulsation. Available in 12 VDC and 24 VDC configurations, the ADC burner is conveniently powered by a standard direct current power supply.
Product Range
Beckett Product Gallery

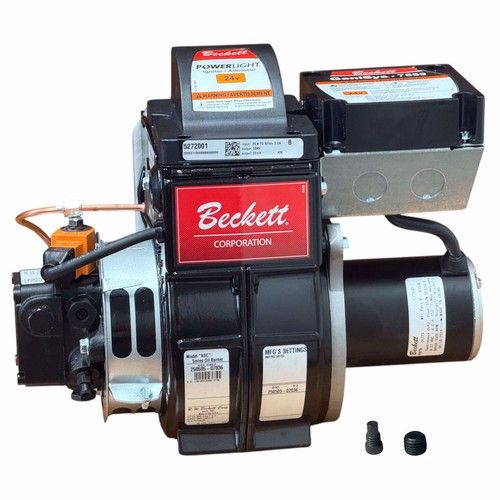

ADC 24V BURNER
17KW – 250KW
Electrical Specifications
Firing Rate: 0.75 to 2.50 GPH (Gallons Per Hour)
Rated Voltage: 27 VDC (nominal charging system voltage)
Reference Voltage: 24 VDC (battery discharge voltage)
Voltage Range: 21.6 to 30 VDC
Internal Fuses: 20 Amp for motor; 7.5 Amp for igniter, control, valve, and alarm

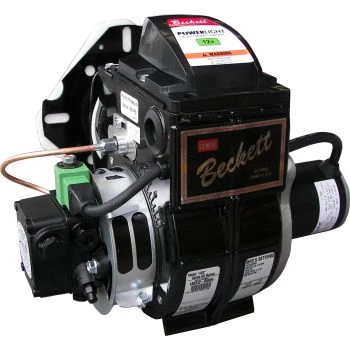

ADC 12V BURNER
17KW – 250KW
Key Specifications
Firing Rate: 0.75 to 2.50 GPH (Gallons Per Hour)
Nominal Voltage: 13.5 VDC (Charging system) / 12 VDC (Battery discharge)
Operating Current Load: ~15 Amps with igniter on; 8–10 Amps with igniter off
Ignition: 12VDC solid-state electronic igniter (20 KVpk / 30 mA)
Fuel Pump: Beckett CleanCut pump with an integrated solenoid valve for smooth light-offs and clean shutdowns
